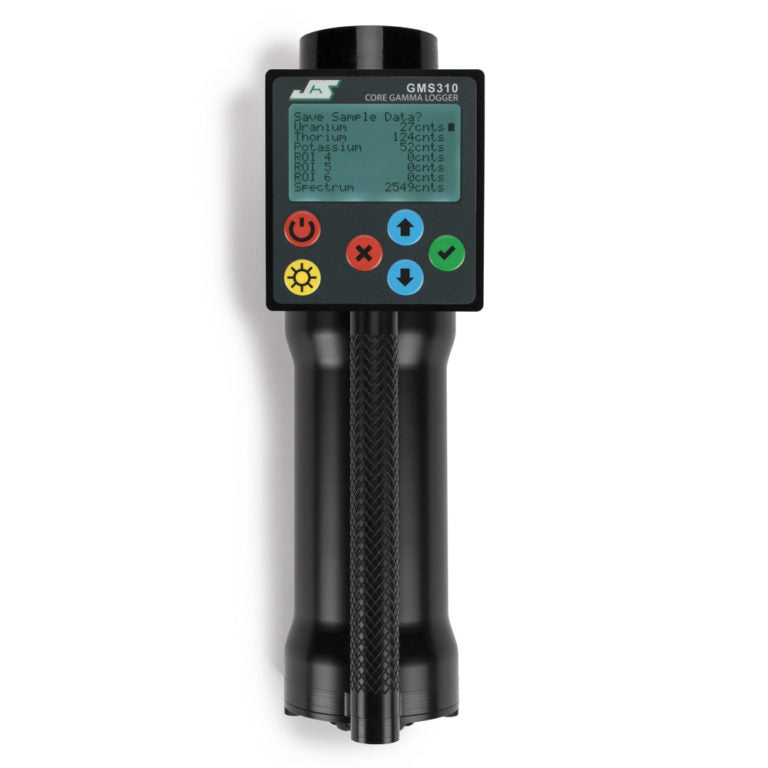

Portable, Easy to Use, and Built to Last.The GMS310 Hand-Held Gamma Spectrum Core Logger is ideally suited for the user that requires API reporting, easy operation, and rugged reliability. This is especially useful in the geophysical field of well or borehole logging and also other industrial applications such as the scrap metal recycling sector. The GMS310 comes preset with commonly used radionuclides, such as Uranium, Thorium and Potassium. In addition to the 6 ROIs the unit uses an additional region covering the entire energy range for overall gross measurements.
This instrument was built specifically to serve the Oil & Gas industry and offers API Reporting.
When the instrument runs out of battery, you can recharge the existing stock or simply replace them with a new set!

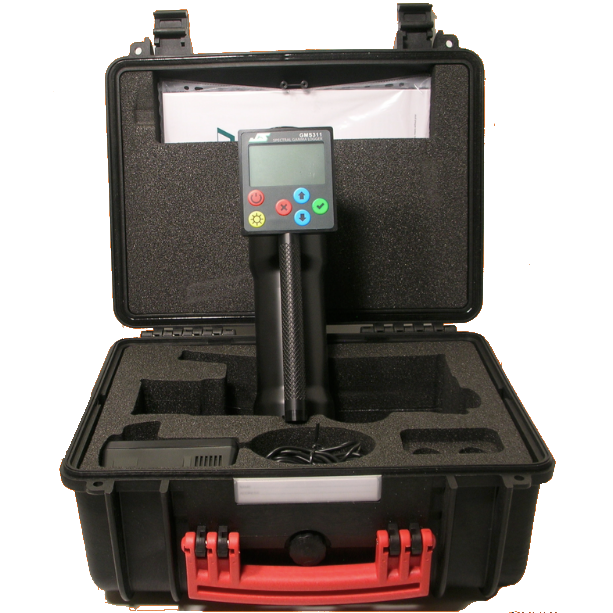

The GMS310 is a hand-held instrument that comes with a carrying case that can be carried or shipped virtually anywhere.
The PC Software allows you to analyze the trends among the measured data to help your core analysis team.
Are you outside the USA? No problem, we work with international customers every day!
We recognize that you are key to our success and we will stick with you beyond the purchase process.
Most of our products include a 1 year warranty, including the GMS310!
1.92 kg (4.2 lbs)
If you have a Cesium 137 calibration source or a Potassium K-40 source, you will be able to calibrate this device on your own. If you do not have these sources, we offer calibration services that include a calibration certificate.
Most of our orders are quoted Ex-Works. If you require different shipping terms, we can work with you but we will need more information.
The sample time for measurements can be set anywhere from 10 seconds to 900 seconds. We recommend that a minimum of 30 seconds per measurement be used. A good thing to remember is that the longer the measurement, the more accurate it will be.
The measurements are best to analyze on the PC software. After a set of measurements are performed, hook the GMS310 up to a PC and follow the instructions in the manual to upload the data and view the results.
The GMS310 comes with a 1 year warranty. An extended warranty is also available for purchase.

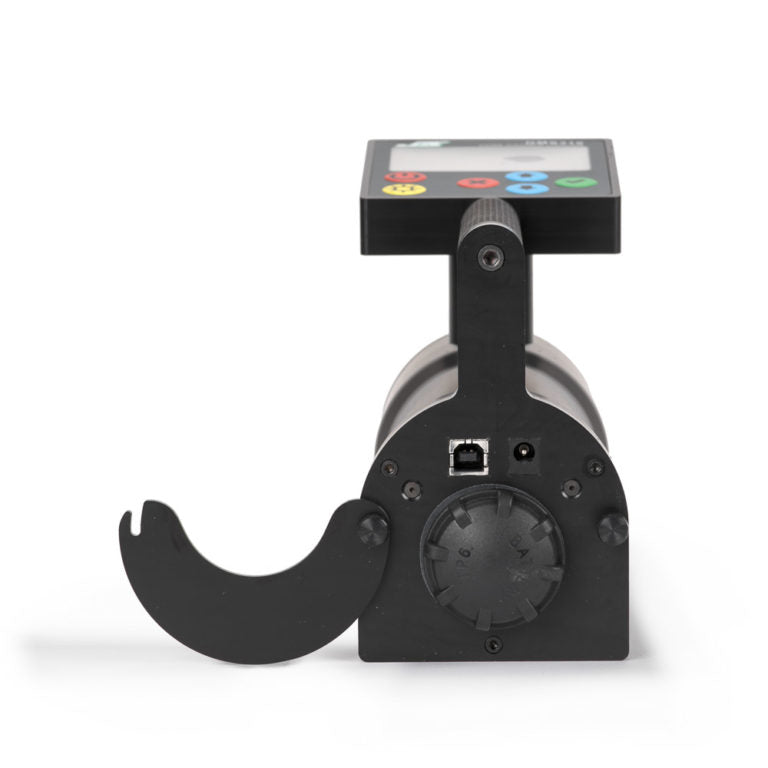

Replacing the battery is simple. Their is an endcap on the back of the instrument that twists off and the batteries are removed. To charge the batteries, they must be inside the instrument. There is a charging port on the back of the instrument for the charging cable. Note: Do not operate the instrument while it is charging.
