bMCA-Box Multi-Channel Analyzer

Background

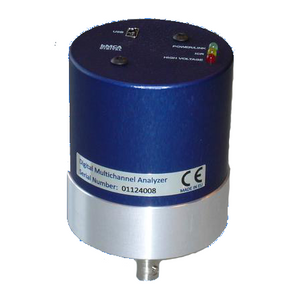

The bMCA-Box is a special version of the bMCA (USB or Ethernet), where the tube socket has been replaced by a single SHV connector. By doing so, the bMCA can be used with a range of odd-sized detectors that are supplied with a single connector that carries both the signal and the high voltage supply.

bMCA is a compact, digital Multi-Channel Analyzer (MCA), which is able to perform Pulse Height Analysis (PHA) of the signal produced by a standard 14-pin standard photomultiplier coupled to a scintillation detector such as NaI(Tl), LaBr3(Ce), LaCl3(Ce), CeBr3, etc.

The device is useful for obtaining the energy spectrum from the photon radiation detected by the scintillator, and can be connected into the local network via a standard Ethernet connection. The device is powered via Ethernet using Power-over-Ethernet (PoE) technology.

 The bMCA is provided with a basic software package that allows one to control the device, and to acquire and visualize the energy spectrum. The software incorporates an advanced and easy to use “discovery” function that can be used to detect automatically all the bMCAs (USB or Ethernet) in the neighborhood of the PC that are available for connection.  A set of programming libraries are also offered, which makes the incorporation of the bMCA into existing radiation system or setup very easy. The programming libraries are available for both MS Windows and Linux operating systems.

Features

• ​Fully digital Multi-Channel Analyzer (MCA) built into a compact 14-pin photomultiplier tube base
• Full Pulse-Height Analysis (PHA) and MultiChannel Scaling (MCS) modes of data acquisition
• Up to 4096 channels for PHA and MCS acquisition
• Advanced electronic noise reduction algorithms
• Compact MCA with size of H 75 mm x D 55 mm
• Ethernet data communications with device IP address set via DHCP or fixed
• Extremely fast data communication rates with 1K PHA spectrum being sent to the PC in 30 microseconds
• Miniature design combining low-power consumption with low noise
• Basic spectrum acquisition and device control software included
• Available programming libraries for Windows and Linux Operating System (upon request).
• LED indicators for communication status and device power, HV power and incoming count rate (ICR)

Description

The bMCA is an advanced, fully digital, compact MultiChannel Analyzer (MCA). This device is used to process the electronic pulses produced by a photomultiplier that is coupled to a scintillator detector. Such detectors are commonly used in the detection of gamma-ray radiation due to their high detection efficiency, medium energy resolution and relatively low price. This kind of MCA is able to produce an energy spectrum from the radiation events detected by the scintillator, storing it in the device’s memory for further retrieval and analysis by the PC.

The bMCA implements two modes of data acquisition:

• Pulse Height Analysis (PHA)
• Multi-Channel Scaling (MCS)

PHA mode is regularly used in nuclear spectrometry and radiometry, while MCS is a very useful feature for following photon detections in specific energy regions as a function of time. MCS acquisition mode is useful in both laboratory and industrial applications that make use of radioactive sources or when seeking for radioactive materials.

Moreover, the MCA has built-in advanced PHA data acquisition modes, such as:

• Acquisition on live time
• Acquisition on real time
• Acquisition to a number of counts in a spectrum region (ROI)
• The combination of time (live or real) or counts on ROI

The bMCA design makes use of the latest advances in digital electronics. The MCA utilizes powerful digital processing techniques and algorithms to better separate the useful signal from noise and to maximize performance under high count rate conditions. The acquired spectra under PHA mode is extended for Dead Time. The device has a spectral memory size of up to 4096 channels and can perform MCS in addition to PHA.

The MCA contains a miniaturized high-voltage power supply optimized for low consumption that provides the necessary power for the PMT tube, including those used with large scintillator detectors.

The bMCA has a spectral memory size of up to 4096 channels and can perform MCS in addition to PHA. On the data communications side, this device features lighting-fast transfer rates, with a 1024-channel spectrum being trans-mitted typically in less than 30 microseconds.

A basic acquisition software package is provided for managing such device operations as setup, control, data acquisition and visualization. A digital oscilloscope function allows monitoring the input and filtered pulses to aid in fine tuning the MCA parameters. The program also includes a few spectrometry related functions for processing the spectral data: calibration, ROI analysis and peak search, to mention a few.

Technical Specifications

PHA Acquisition Mode

• Spectral memory size of 256, 512, 1024, 2048 and 4096 channels
• Coarse gain with amplification factors of 1, 2, 4 and 8. Fine gain from 1 to 2 in steps of 1/4096
• Upper and Lower Level Discriminator settings given in channels
• PHA acquisition presets on:
• Live Time
• Real Time
• Counts on a ROI
• or combination of both - time or ROI counts

 MCS Acquisition Mode

• Spectral memory size of 256, 512, 1024, 2048 and 4096 channels
• Dwell time from 0.1 s to “count-forever”
• Easy to setup from ROIs or nuclide information.

 Digital Settings

• Rise Time: from 0.1 to 12 s in steps of 0.2 s
• Flat Top: from 0.1 to 8.0 msec in steps of 0.1 usec
• Threshold: 1 to 255
• Digital Base Line Restorer (BLR)
• Pile-Up Rejector (PUR)

 High Voltage Power Supply

• Miniature HV power supply embedded into the MCA assembly
• Voltage: 0 to 1,500 V in 4096 steps

 Data Communication

• Ethernet, IP address fixed or set via DHCP
• Fast transfer rates: 30μs typical for a 1024-channel energy spectrum
• Set of cables and PoE injector​

 Environmental

• Industrial temperature range: -40 °C to +85 °C.

 Physical

• Size: height 75 mm, diameter 55 mm
• Weight: approximately 200 gm
• Connectors: Ethernet RJ45

Indicators

• Red LED for detector high voltage
• Yellow LED for incoming count rate (ICR)
• Green LED for power and communication status

 Other

• The device is supplied with a basic software (free download) to control operation, data acquisition and spectrum visualization.

Certifications

• The device is CE compliant
